PLAY40 (Art. 355, Art. 355T, Art. 355D)

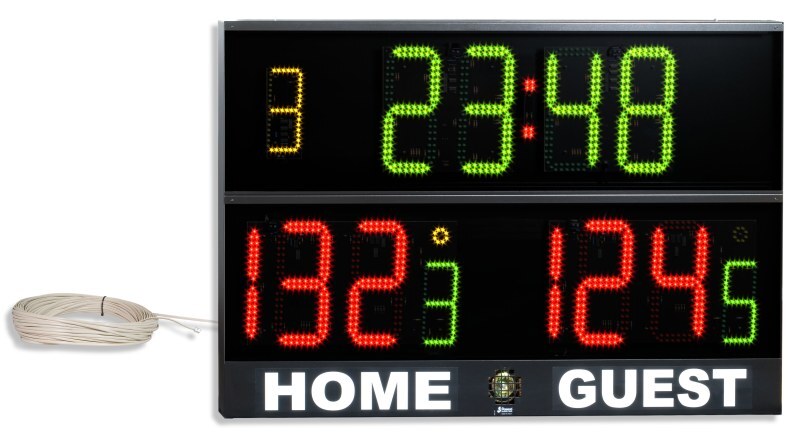

Electronic multisport scoreboard (150 x 98 cm) for great gyms and sporting centres. Scoreboards for basketball, volley, 5-aside, handball, ecc.


  • Art.355 - PLAY40 Scoreboard with only keys console and without display (console cable 50m)
  • Art.355T - PLAY40 Scoreboard with infrared remote control
    (console cable 50m)
  • Art.355D - PLAY40 Scoreboard with console display
    (console cable 60m)

PLAY40 Electronic scoreboard with only keys console and without display (Art.355)

Shown functions

  • Scores: from 0 to 199 on left and right-hand sides. Digits height of 30cm, readable clearly up to 90m and beyond.
  • Set/Bonus/Fault: one figure on right and left-hand side setable from 0 to 9 or passed away. Height of the figure is 20cm, clearly readable up to 60 m and beyond.
  • Possession/Priority/Turn: bright stitch on the home or local side or passed away.
  • Chronometer: maximum 99 minutes and 59 seconds. Digits height (30cm) readable clearly up to 90m and beyond. Timer programmable and choice of the mode on or to back. Visualization of the tenth of second in the last minute of count. Such function can be excluded. The colour of the two bright stitchs placed between minutes and second, shows in a clear and immediate way the state of the chronometer: Green = count in progress, red = stop. An acoustic signal 105db-30cm (which can be disabled) warns about the expire of the time.
  • Periods: a figure from 0 to 9, or extinguished. Digits height (20cm) clearly readable up to 60m and beyond.

Technicals

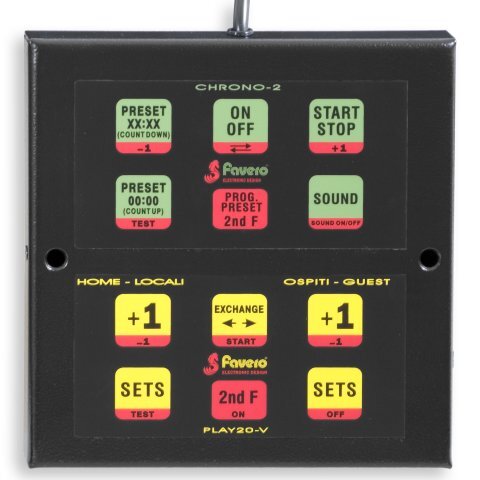

  • Keyboard with big and coloured keys, very strong and reliable. Each key span-life runs over 3 million of operations.

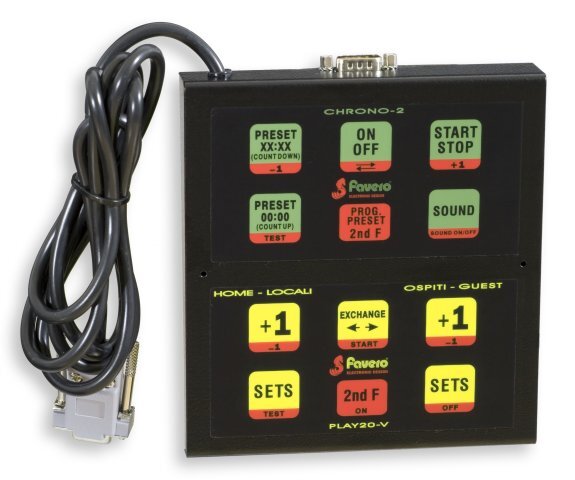

    The keyboard is supplied with a 50m long cable with a connectors on both ends, for a comfortable disconnectedness of the keyboard or of the scorer.
    The possible lenghtening of the cable up to 150m is easy to be built since the cable has only 3 wires.
  • Acoustic signaller. It is used a car horn (loud intensity of 120dB at 1 meter).
    Besides signaling automatically the count of the chronometer run out, the horn can also be manually controlled. The use of horns instead of the air compressed trumpet avoids the possibility of confusing the itself one with the air compressed-trumpets that can be driven by the audience.
  • Inscriptions adhesive are available in (LOCALI-OSPITI) Italian, (HOME-GUEST) English, (HEIM-GÄSTE) German, (LOCAUX-VISITEURS) French and (LOCALES-VISITANTES) Spanish. Specify in the order the wished tongue.
  • The installation is very simple. Inserting the plug is enough and the tables is already to be used.
  • It is supplied with suitable thin chains that allow, not only an easy fixing to wall or at ceiling, but also the possibility to easily change the inclination of the scorer to obtain the best possible visibility. The installation guide is enclosed.
  • Strong container in metal painted to dust. Front panel made from anti-glare polycarbonate.
  • Dimension:
    Scoreboard: width 150cm, height 98cm, depht 7cm.
    Keyboard: width 14cm, height 15.5cm, depht 3.5cm.
  • Total weight: 34.5kg.
  • Power supply: 230Vac, 50-60Hz, 120VA MAX.
    Is also available the version 115Vac.

OTHER VERSIONS


PLAY40 Electronic scoreboard with remote control (Art.355T)

Available the version with infrared remote control in which, any way the keyboard with cable long 50 meters is given in endowment. Technicals details of the remote control:

  • 25 meters range.
  • Strong covering in aluminium and of contained dimensions: 11 x 4.8 x 2.2cm.
  • Keyboard with a membrane unassailable from dirty and liquids.

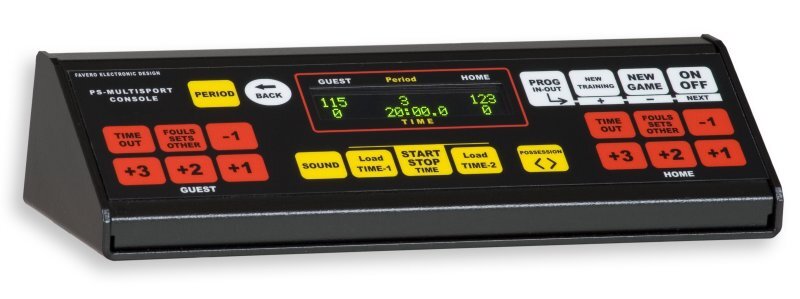

PLAY40 Electronic scoreboard with luminous console display (Art.355D)

The link between the scoreboard and the console takes place through a wire phone: in endowment is given a 60m long cable. The console with display presents the following advantages:

  • it is necessary if the console operator does not have a direct vision of the scoreboard and it performs the management easier;
  • it disposes of a greater number of keys and tasks;
  • Can be connected up to 4 scoreboard repeaters PLAY40-REPEATER (see options).




OPTIONS


PLAY40-REPEATER (Art.356): use of a second scoreboards as repeater.
Some times can be useful install two scoreboards to improve the visualization by the audience and/or of the players. In this case is it possible to link up PLAY40 principal scoreboard on a second scoreboard, called PLAY40-REPEATER, which repeats the same visualizations with the same dimensions. The link among two scorers happens through a telephone cable (in endowment is along 100 meters). The cost of a PLAY40-REPEATER is the same to that of the PLAY40.



ADDITIONAL CONSOLE (Art.355-03) for Art.355 and Art.355T.
A second console can be connected to the main one with a cable long 1.5m to allow a more comfortable management of the scoreboards by 2 people (Time controller and Scorer).



Item codes and prices (not including VAT) VAT information

Electronic multisport scoreboard with console display - Basketball scoreboard

Art.355D - # PLAY40 with console display

This model is out of stock and it is NO MORE PRODUCED.

Size: 150x98x7cm. - Weight: 34kg.

electronic scoreboard repeater-second scoreboards as repeater

Art.356 - # PLAY40-REPEATER repeater Play40

This model is out of stock and it is NO MORE PRODUCED.

Size: 150x98x7cm. - Weight: 33kg.

Electronic scoreboard with timer for multisport with only keys on console - Basketball scoreboard

Art.355 - # PLAY40 with only keys on console

This model is out of stock and it is NO MORE PRODUCED.

Size: 150x98x7cm. - Weight: 34.7kg.

Electronic scoreboard for multisport with infrared remote control - Basketball scoreboard

Art.355T - # PLAY40 with infrared remote control

This model is out of stock and it is NO MORE PRODUCED.

Size: 150x98x7cm. - Weight: 34.9kg.
