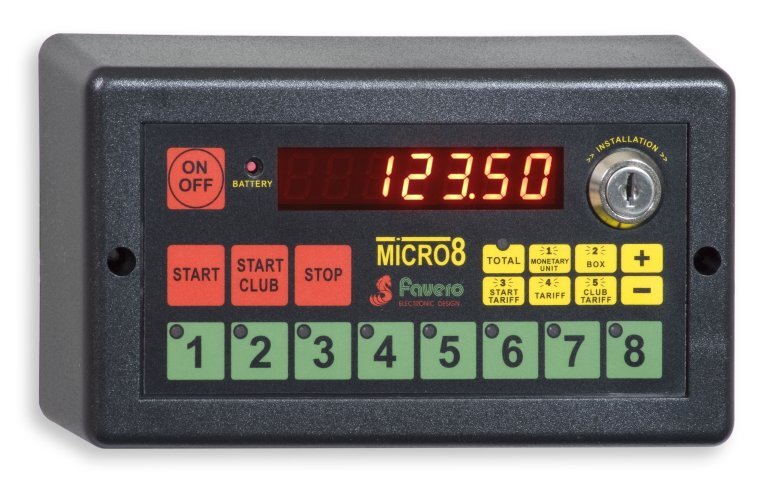

MICRO8 (Art.708)

MICRO 8 has been designed mainly for running time controlled billiards, but can also be used wherever time is used for billing the user.

For billiards, table tennis, bowls, tennis, darts, tables for playing cards, golf, minigolf, bowling, virtual machines, time controlled video-games, internet rooms, solariums, saunas, air-hokey, professional billiard cues, bicycle, motorcycle, boat rental, etc..




FEATURES:

  • Simple to learn and to use. An extremely strong keypad, with one button for each billiard and a small number of function keys makes it easy and quick to use.
  • Running 8 Billiards. Its low cost makes it convenient even for just two billiards. Other models are available for one billiard or more than eight billiards. The currency for any country can be programmed and the minimum tariff can be programmed for each billiard together with two hourly tariffs (normal and club). Programming mode and the totals (overall total is displayed with 9 digits, single totals are displayed with 8 digits), together with their visualization can be accessed only using a key. Another total can be displayed without a key for service personnel. An internal battery allows you to turn on MICRO 8 even during a blackout so you can view the sums due. This battery is NOT for keeping the data in memory which will remain even if the battery is removed.
  • It has a small and sturdy insulated plastic case that does not need earthing. Wall mounting is simple, solid and immediate using 2 front screws.
  • Power supply: 230Vac, 50-60Hz, 30mA (Available also for 115V).
  • Weight and dimensions: 21.3cm long, 12.3cm high, 5.6cm deep, 750g.


MICRO8-P with output for printer (Art.708-P)

This model has the same characteristics as the MICRO8 but in plus it owns an output to connect the suitable printer (Art. 710) useful to print the receipt, the totalizators, etc..

Options MICRO8

MICRO8 is fitted with 2 connectors for connection with two external controllers: CONTROL-LAMP-4-8 (for controlling the activation of 4-8 lamps or other electrical appliances) and CONTROL-BALL-4-8 (for controlling 4-8 billiard ball boxes). The controllers can be installed up to 100 m from MICRO8 and are connected using a normal 4-way telephone wire. Each controller has a 15 m extension. The controllers can therefore be positioned in the best location for the user, thus simplifying their connection to the lamps or the billiard ball boxes and the MICRO8.

CONTROL-LAMP ...>>Link
Is designed for controlling the activation of 4-8 lamps or other electrical appliances. Each of the 4-8 outputs is relay-controlled and protected by a fuse. The load that can be applied to each output is 5A/250 V. CONTROL-LAMP-8 power supply: 220V 60 mA.

CONTROL-BALL ...>>Link
Is designed for controlling 8 BOXES (cases) which hold the billiard balls. The connection between each BOX and the controller is carried out using two wires at low voltage (24V). The BOX is a sturdy metal container with a simple mechanical system (patented) for controlling the billiard balls. There are BOXES for all types of billiard balls: see article code numbers. When a game start (START) is given to the MICRO8, the ball door opens automatically thus allowing the player to take the tray holding the balls. When the tray with ALL the balls is replaced into the BOX and the door is closed (the door will not close if even one ball is missing), the MICRO8 will stop the time count and display game-over to the operator. The CONTROL-BALL-8 can also be connected to simple ball holders where a micro-switch trips when the ball tray is removed. In this case the game starts automatically when the tray is removed.

PRINTER ...>>Link
Prints on forty (40) columns. It automatically prints the receipt at the end of each game or only when the PRINT button is pushed. Printed on the receipt is an account of the game charges and possible food-and-drink charges, and the first line of that receipt may bear an advertising message. Choice of whether or not to print on the receipt the beginning and ending time of each game. Useful for printing the complete status of the totalizers as well as of the programming.

CONTROL-CARDS ... >> Link
For the control of packs of playing cards.

Item codes and prices (not including VAT) VAT information

Clocks for hourly rate  for billiards

EUR 360.00

Art.708 - MICRO8

Size: 21,3x12,3x5,6cm. - Weight: 0.75kg.

Clocks for hourly rate  for billiards

EUR 410.00

Art.708-P - MICRO8-P (with output for printer)

Size: 21,3x12,3x5,6cm. - Weight: 0.77kg.

Billiards lamps digital controller to lighting / controller for controlling the activation of 4 lamps or other electrical appliances

EUR 162.00

Art.739 - CONTROL-LAMP-4 (4 lamps controller)

Size: 20x15x8cm. - Weight: 0.7kg.

Billiards lamps digital controller to lighting / controller for controlling the activation of 8 lamps or other electrical appliances

Art.740 - CONTROL-LAMP-8 (8 lamps controller)

Size: 24,5x19,7x9,5cm. - Weight: 1.25kg.

PRINTER for clocks for hourly rate MICRO32

EUR 395.00

Art.710 - PRINTER for MICRO32

Size: 17x12x10,5cm. - Weight: 1.4kg.
