art.728 CONTROL-BALL-4 (4 BOXes controller)

art.730 CONTROL-BALL-16 (16BOXes controller)

Detailed descriptions on the operation and connections can be found in the MICRO8 or MICRO32 manual under the heading CONTROL-BALL.

SPARE PARTS

Item codes and prices

MICRO8 Manual

MICRO32 Manual (774k)

MICRO32 Rel.2 Manual (894k)

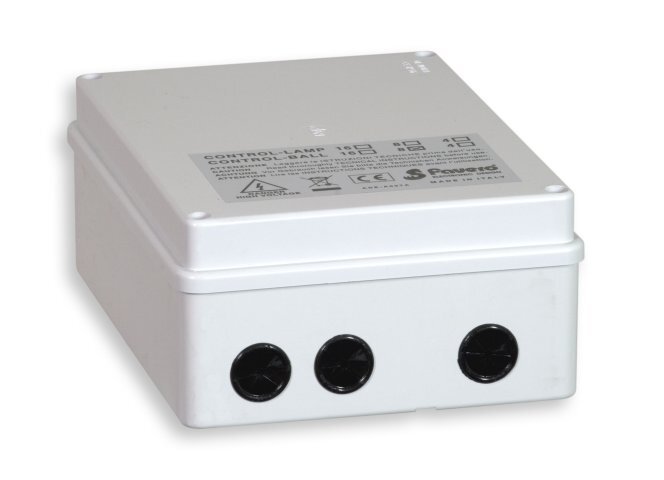

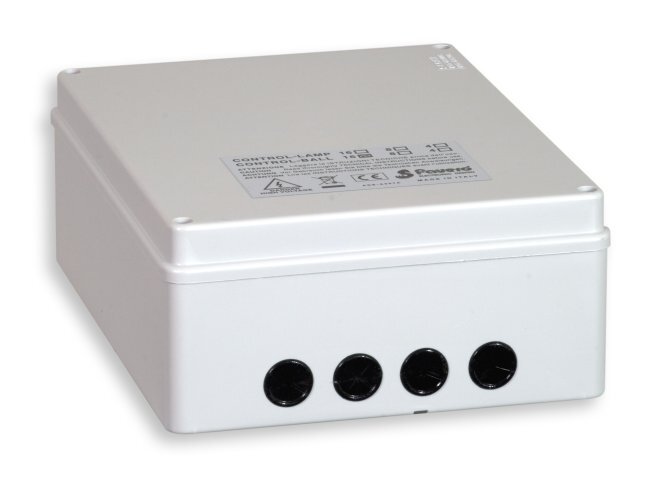

CONTROL-BALL-4/8/16 (Art.728, Art.729, Art.730)

Options for MICRO8 and MICRO32

Is designed for controlling the BOXes (cases) which hold the billiard balls.

Three models available: for 4, 8 and for 16 boxes.
Art.728 - CONTROL-BALL-4 can control the balls for 4 tables.
Art.729 - CONTROL-BALL-8 can control the balls for 8 tables.
Art.730 - CONTROL-BALL-16 can control the balls for 16 tables.
The connection between each BOX and the controller is carried out using two wires at low voltage (24V).
BOX is a sturdy metal container with a simple mechanical system (patented) for controlling the billiard balls.
There are BOXes for all types of billiard balls: see ARTICLE CODES section.
When a game start (START) is given to the MICRO8-MICRO32, the ball door opens automatically thus allowing the player to take the tray holding the balls. When the tray with ALL the balls is replaced into the BOX and the door is closed (the door will not close if even one ball is missing), the MICRO8-MICRO32 will stop the time count and display game-over to the operator.
The BALL-CONTROL can also be connected to simple ball holders where a micro-switch trips when the ball tray is removed. In this case the game starts automatically when the tray is removed.
CONTROL-BALL power supply: 230Vac, 250mA Max (115V).

art.416 BOX-16B Wall mount. For Pool (16x57mm)

art.403 BOX-3B Wall mount. For Carom billiards (3x61.5mm)

art.403A BOX-3B/A Wall mount. For Italiana game (2x68 +1x59mm)

art.404 BOX-4B Wall mount. For 4 balls (4x61.5mm)

art.409 BOX-9B Wall mount. For 9 balls (9x61.5mm)

art.409A BOX-9B/A Wall mount. For 9 balls (8x59 + 1x54mm)

art.416A BOX-16B/52 Wall mount. For English pool (16x50-52mm)

art.416B BOX-16B/68 Wall mount. For Russian Pyramid (16x68mm)

art.422 BOX-22B Wall mount. For Snooker (22x52-54mm)

SPARE PARTS

Item codes and prices

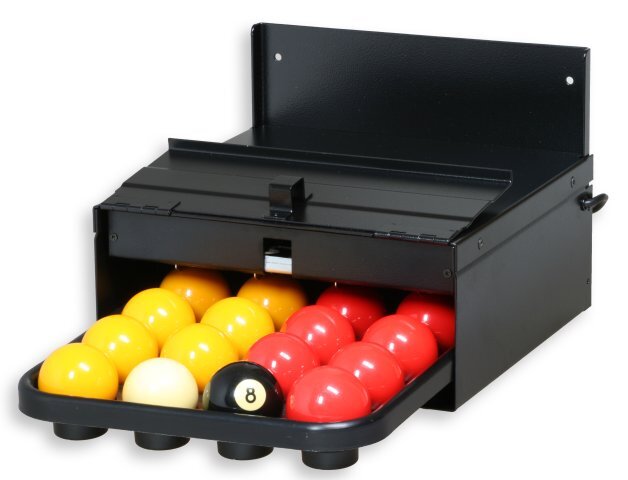

Balls BOX - Wall mounting

All the below mentioned BOXES have a rear shoulder in sheet metal for wall mounting.

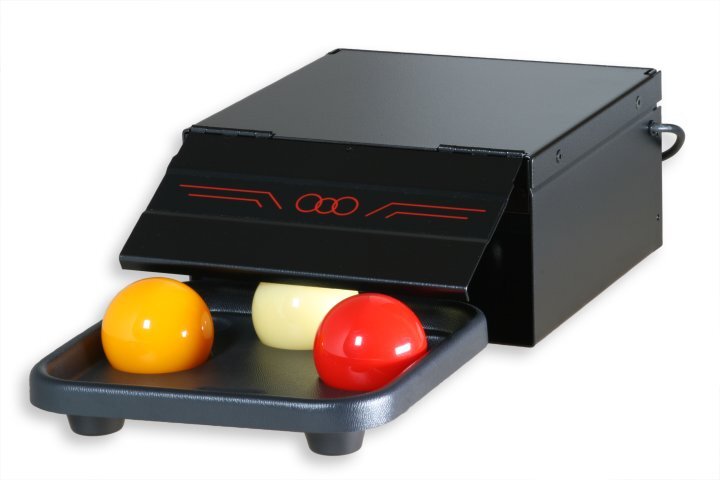

Art.403	- BOX-3B for CAROM (3 x Ø61,5mm)

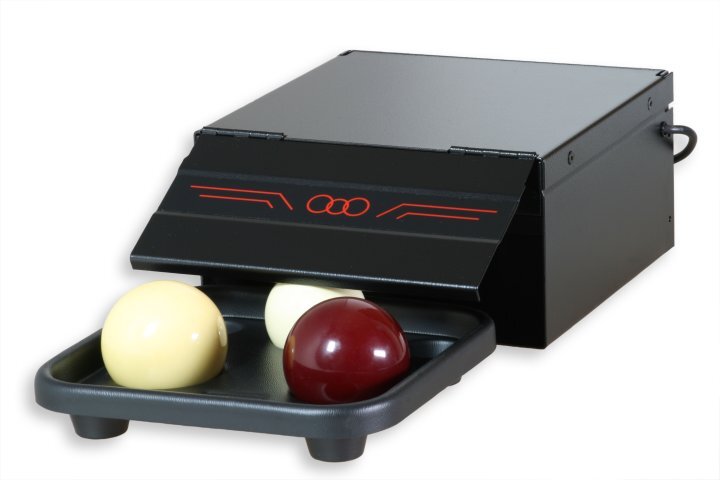

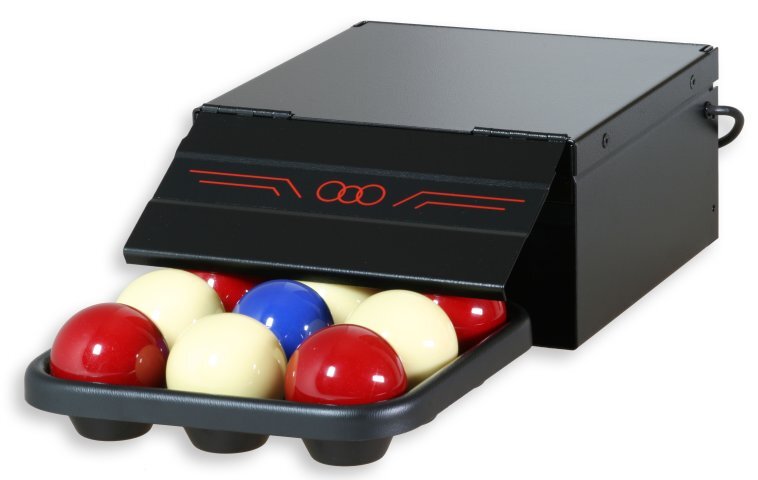

Art.403A	- BOX-3B for ITALIANA (2 x Ø68 + 1 x Ø59mm)

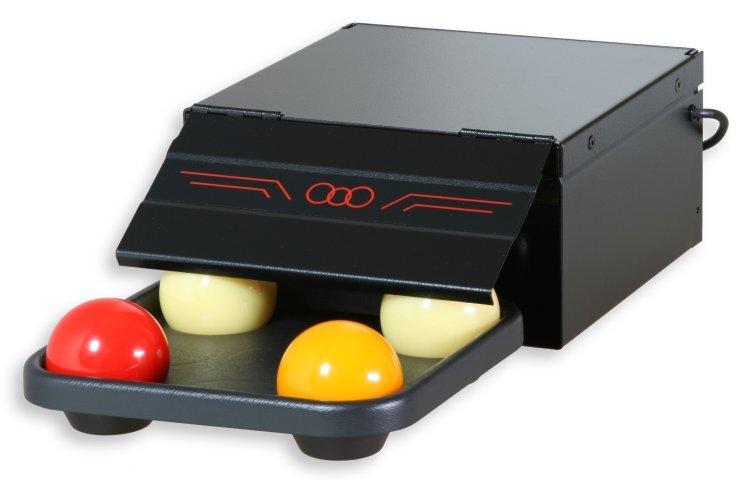

Art.404	- BOX-4B for 4 balls (4 x Ø61,5mm)

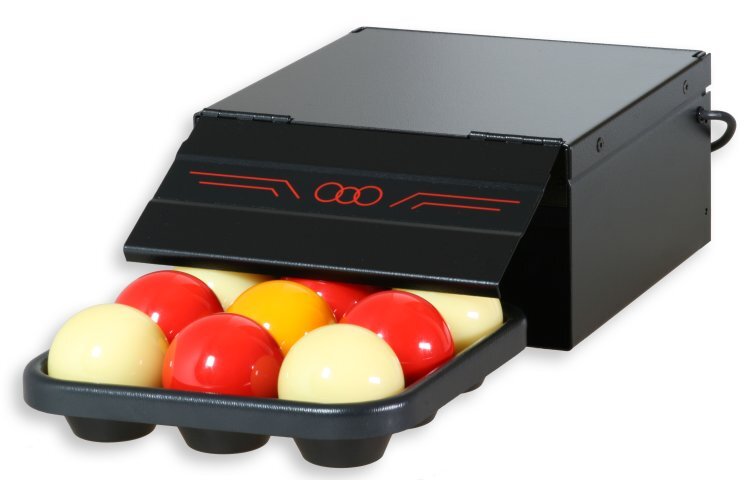

Art.409	- BOX-9B for 9 balls (9 x Ø61,5mm)
Art.409A	- BOX-9B for 9 balls (8xØ59 + 1xØ54mm)

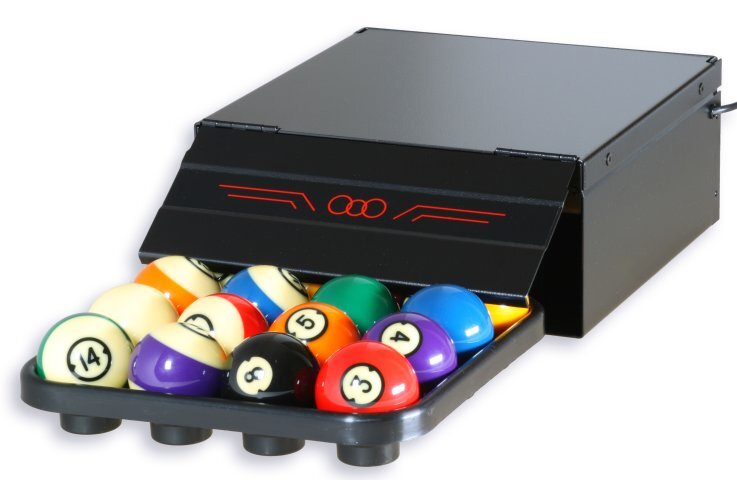

Art.416	- BOX-16B for POOL (16 x Ø57mm)
Art.416A	- BOX-16B/52 for ENGLISH POOL (16 x Ø50-52mm)
Art.416B	- BOX-16B/68 for RUSSIAN PYRAMID (16 x Ø68mm)

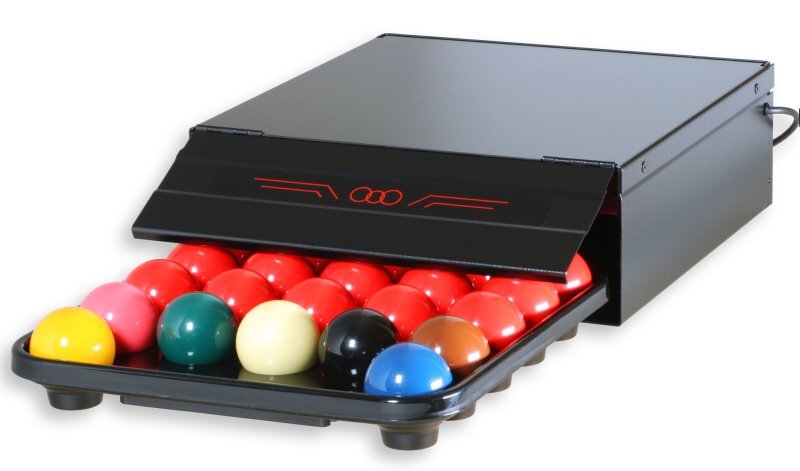

Art.422	- BOX-22B for SNOOKER (22 x Ø52-54mm)
Art.402	- BOX-PING-PONG for controlling 2 bats and one little ball
Art.440	- MINI-BOX for controlling a little ball (Ø35-40mm)

art.403A/L BOX-3B/A Low version. For Italiana game (2x68 +1x59mm)

art.404/L BOX-4B Low version. For 4 balls (4x61.5mm)

art.409/L BOX-9B Low version. For 9 balls (9x61.5mm)

art.409A/L BOX-9B/A Low version. For 9 balls (8x59 + 1x54mm)

art.416/L BOX-16B Low version. For Pool (16x57mm)

art.416A/L BOX-16B/52 Low version. For English pool (16x50-52mm)

art.416B/L BOX-16B/68 Low version. For Russian Pyramid (16x68mm)

art.422/L BOX-22B Low version. For Snooker (22x52-54mm)

SPARE PARTS

Item codes and prices

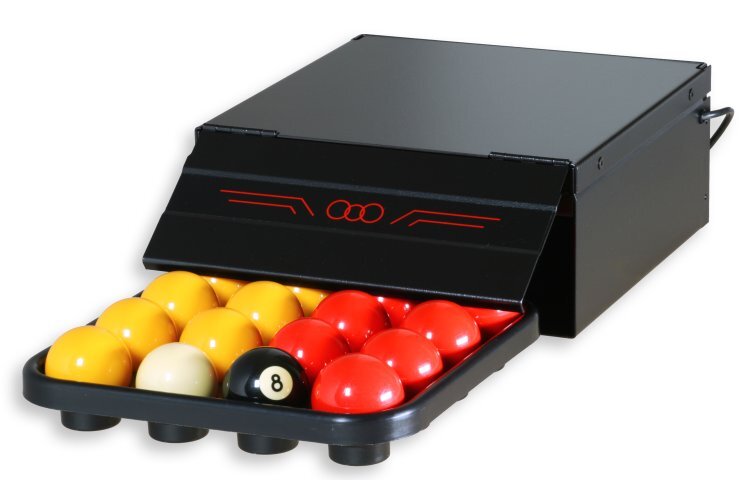

Balls BOX - Stacked version

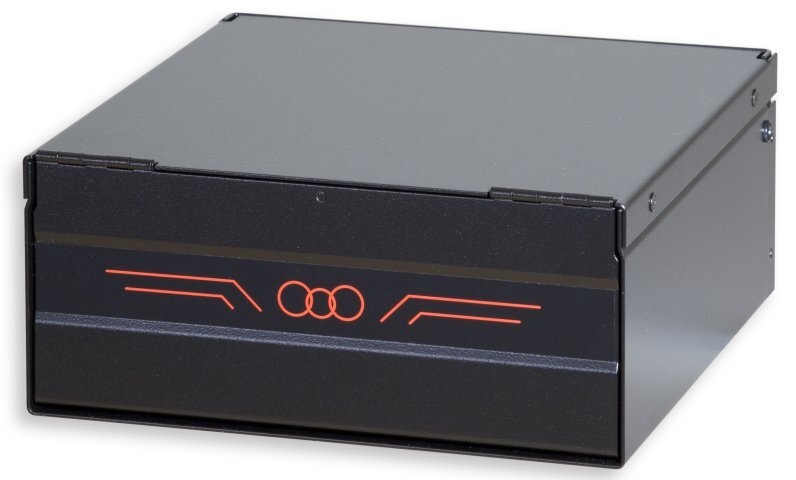

If the boxes have to be stacked one on top of another, they are available without rear shoulder and with an anti-slip rubber insert; their code number has the word /L added (example: Art. 403/L).

Art.403/L	- BOX-3B for CAROM (3 x Ø61,5mm)
Art.403A/L	- BOX-3B for ITALIANA (2 x Ø68 + 1 x Ø59mm)
Art.404/L	- BOX-4B for 4 balls (4 x Ø61,5mm)
Art.409/L	- BOX-9B for 9 balls (9 x Ø61,5mm)
Art.409A/L	- BOX-9B for 9 balls (8xØ59 + 1xØ54mm)
Art.416/L	- BOX-16B for POOL (16 x Ø57mm)
Art.416A/L	- BOX-16B/52 for ENGLISH POOL (16 x Ø50-52mm)
Art.416B/L	- BOX-16B/68 for RUSSIAN PYRAMID (16 x Ø68mm)
Art.422/L	- BOX-22B for SNOOKER (22 x Ø52-54mm)
Art.402/L	- BOX-PING-PONG for controlling 2 bats and one little ball
Art.440/L	- MINI-BOX for controlling a little ball (Ø35-40 mm)
