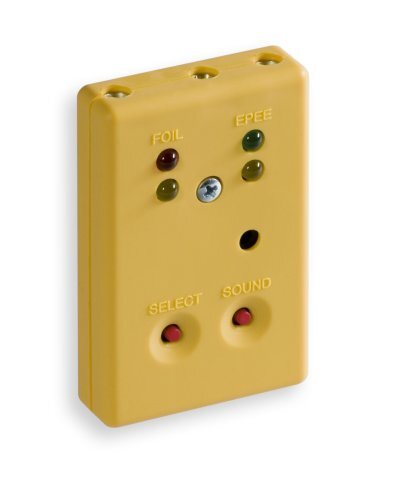

FTT-1 (Art. 895)

Miniaturized device and Tester for fencing


The user can select three operation modes:

  • Foil hit recorder.
  • Epee hit recorder.
  • Tester for the electric control of body cords and the 3 weapons.

The low cost, the easy use and the multiple functions make it an indispensable device for every fencer.



Foil hit recorder:

  • FTT-1 is connected to the 3-pin plug of all the body cords in order to use it with any kind of connector in the weapons.

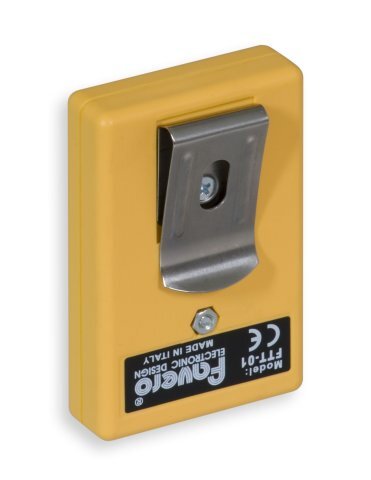

  • It comes with a special clip, which is easily fixed to the athlete’s clothing, close to the output of the body cord (small pocket, belt, etc.).
  • It signals every time the tip of the weapon is pressed, even if this occurs on non-valid targets.
  • It signals the hit only if the contact time of the tip is compliant with the FIE regulations, thus guaranteeing a correct execution.
  • It is ideal for training because it makes reels, pistes, cables and signalling units superfluos.
  • It allows to select 3 kinds of sonorous signalling:
    1. two of the signals last for 1 second and have different tonalities that distinguish the hits of the two competitors.
    2. a third signal has a short duration of 0.15 seconds in order to identify hits made in rapid succession during training.

Epee hit recorder:

  • FTT-1 has all the characteristics listed for the foil hit recorder; the contact times of tip complies with the FIE regulations for epee.

Tester for the electric control of the body cords and the 3 weapons:

  • The tester verifies the electric conductance of the circuits on the 3 weapons and on all kinds of body cords.
  • The micro-interruptions of the circuits are signalled both visually and audibly even when they last a millisecond; in this manner uncertain contacts or brief disconnections during the movement of the cables can be identified.



General Characteristics:

  • Automatic turn off: after 5 minutes of inactivity.
  • Automatic reactivation: at the first recorded event.
  • Standard battery, included: 12V type A23.
  • Extremely reduced dimensions: 7.6 x 4.8 x 1.6cm.
  • Super light: 60g.



Item codes and prices (not including VAT) VAT information

Fencing Trainer & Tester

EUR 50.00

Art.895 - FTT-1 Fencing Trainer & Tester

The battery is included

Size: 7,6x4,8x1,6cm. - Weight: 0.06kg.

art.876  12V alkaline BATTERY  (A23, VR22 type)

EUR 0.80

Art.876 - 12V alkaline BATTERY (A23, VR22 type)

Spare part

Weight: 0.01kg.
