This pair of electronic scoreboards (side displays) belong to our range of large electronic scoreboards designed to be installed in sports palaces (indoor stadiums) and school gyms and college gyms; the large size of the SMD LED displays compared to normally-sized LED scoreboards makes it possible to view the scores from far away, even from side positions. They are designed to be used along with score panels and other sports accessories available from oursports catalogue.
The modular structure of these sports scoreboards makes them as easy to mount as any normal sports equipment.

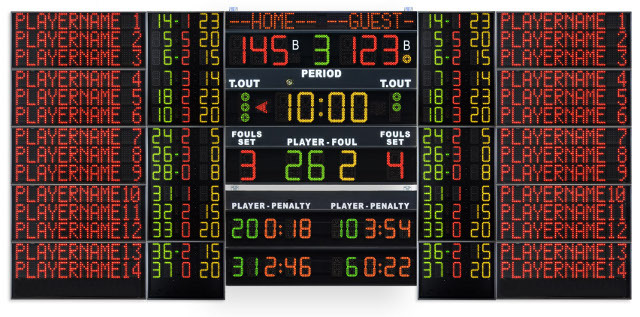

Pair of panels (side displays) showing the name of 14 players on the 2 teams.
Ideal for Basketball, Volleyball, 5-a-Side Football (Futsal), Waterpolo, Handball, etc..
Functions displayed for each player (14 players per team):
Player name: 12 characters, 15cm high.
Technical characteristics for both panels:
Dimensions and weight: 2x 145x300x11.5cm, 206kg.
Distance and readability angle: 70m (230ft), 150 degrees.
No front protection cover required. Complies with DIN 18032-3 and UNI 9554 standards on "resistance to damage from balls". You save on the cost of a protective cover, visibility is completely preserved, and access to the scoreboard is easy.
- F.I.B.A. approved (info, FIBA certificate). It can be used together with other models for creating large scoreboards displaying various information (info).
Shipping is cheap and fast. The scoreboard is especially designed to be taken apart into smaller modules that are easy to assemble. This allows it to be shipped via all major couriers at a low cost and with faster delivery times to all countries.
Easy to install. Technical instructions in 5 languages. Provided with bolts and brackets for wall mounting.
Supplied with serial cable 4m in length to connect to the main electronic scoreboard (FS-100/100N, FS-110/110N, FS-120/120N, FS-130/130N) or to a Radio Receiver (art.265-10). See ACCESSORIES.
Robust container made from powder-coated aluminum. Front panel made from anti-glare polycarbonate.
Views are easily accessible from the front, built with high-quality, wide-angle SMD LEDs with an average life of 100,000 hours!
Control Console (not included). Controlled via the Control Console (see ACCESSORIES) of the electronic scoreboard above it.
Guarantee: 2 years (info).
Power supply: 100-240Vac, 50-60Hz, 280VA. Select the type of plug for the power supply cord when ordering.
ACCESSORIES (not included):
Scoreboard Control Console ... >> Link
CONSOLE-320 (art.230A) comes equipped with a large graphic display and can be used to control all FS-series scoreboards. To avoid having to connect the console to the scoreboards with a serial cable, a radio-controlled version (art.230B) is available.
Radio Receiver for FS scoreboards (art.265-10)
Receives the data transmitted by the control console, when it is equipped with a radio transmitter, and distributes the signal to one or more scoreboards. Radio communication is at 2.4GHz, on a channel chosen automatically to prevent interference with other equipment.
>> Radio Receiver installation manual
