Wrestling Scoreboard. Tabletop Portable Scoreboard for Greco-Roman Wrestling, Freestyle Wrestling and Female Wrestling.

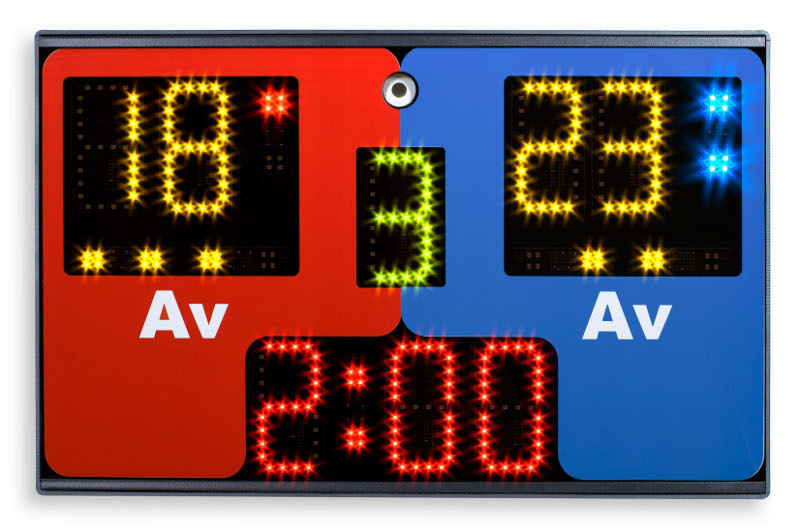

The PS-W is an electronic scoreboard ideal for Greco-Roman, Freestyle and Female Wrestling contests. It works according to the current rules of the FILA (Federation Internationale des Luttes Associees).
It is also indicated for training with Action/Pause sequences.
Heigh of digits: 9cm, easily visible for over 30m.
- Scores: from 0 to 99 per athlete.
- Cautions (Av): 3 luminous points per atlete.
- Victories: 2 luminous points per atlete (2 blue + 2 red).
- Period: from 0 to 9.
- Chronometer: from 0:00 to 9:59. Counting in forward or backward mode. Five programmable timers which are easily activated from the consul via special keys for managing various types of Wrestling. A special timer for Greco-Roman Wrestling is also included which permits managing the continuation of count time when a "danger position" is present.
- Acoustic signal: automatic to the end of time (if enabled) or manual, with 3 different types of sound and 3 levels of volume.
- Training mode: programming of sequences "action-pause" by the setting of the Action time, Pause time and Number of sequences; useful for many sports.
- CASING: light, resistant and easily transportable.
- Casing: light, resistant and easily transportable.

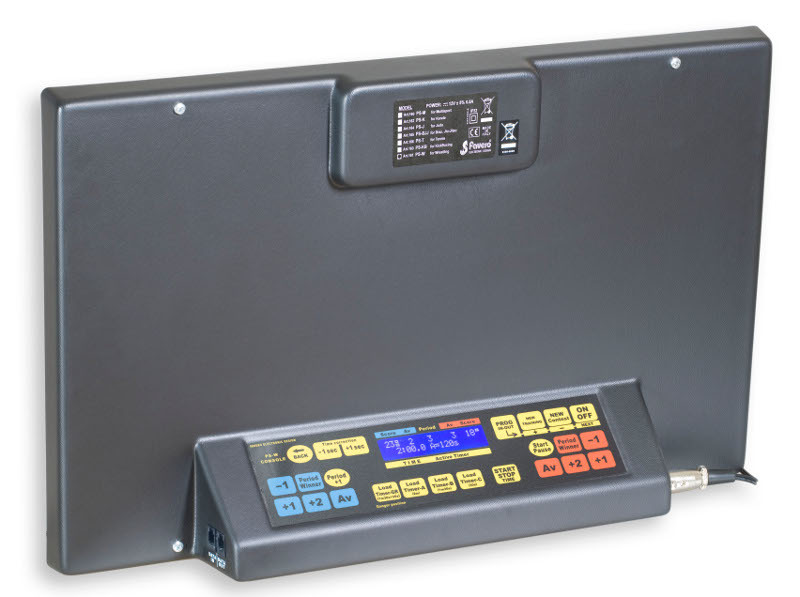

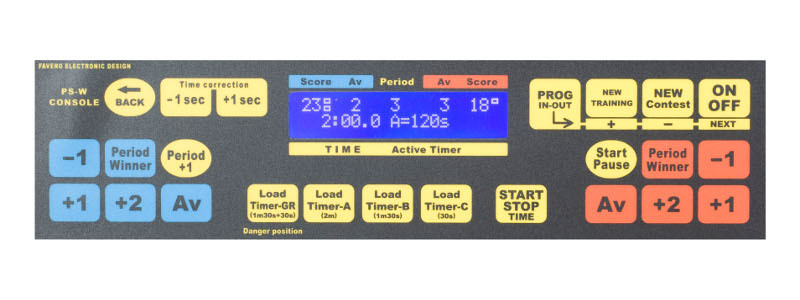

- Console with bright display behind the scoreboard for easy table use. Dirt-proof and waterproof membrane keyboard.
- Out/In Serial Ports for linking various scoreboards in cascade and for a variety of displays in different positions and angles.
- Power supply: the PS-KB is provided with a 100-240V/12Vdc AC Power Adaptor; the type of plug can be specified when ordering. Power can also be supplied using an external rechargeable battery (see Optional Accessories, Item 828).
- Dimensions and weight: 55x35x9.5cm, 3.6kg.
- Art.167 Carrying case
The carrying case may also house the battery (Art.828) and the battery charger (Art.169).
For the battery power supply:
- Art.828 Rechargeable battery 12V/6-7Ah. The average duration of the battery is from 8 to 10 hours.
- Art.169 Battery Charger 100-240Vac/13.8Vdc, for battery art.828.
Additional, separate Console, to control at distance the PS-W

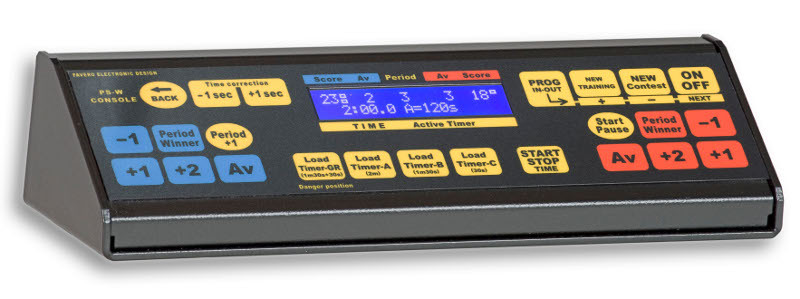

- Art.358-PSW Console Display PS-W (picture1, picture2)
It comes with power supply and 2.5m long cable for the connection to the PS-W scoreboard. Different length cables are available: 15m (art.859), 30m (art.859A) and 60m (art.859B).
Power can also be supplied using an external rechargeable battery (art.828). The average duration of the battery is from 80 to 100 hours.
